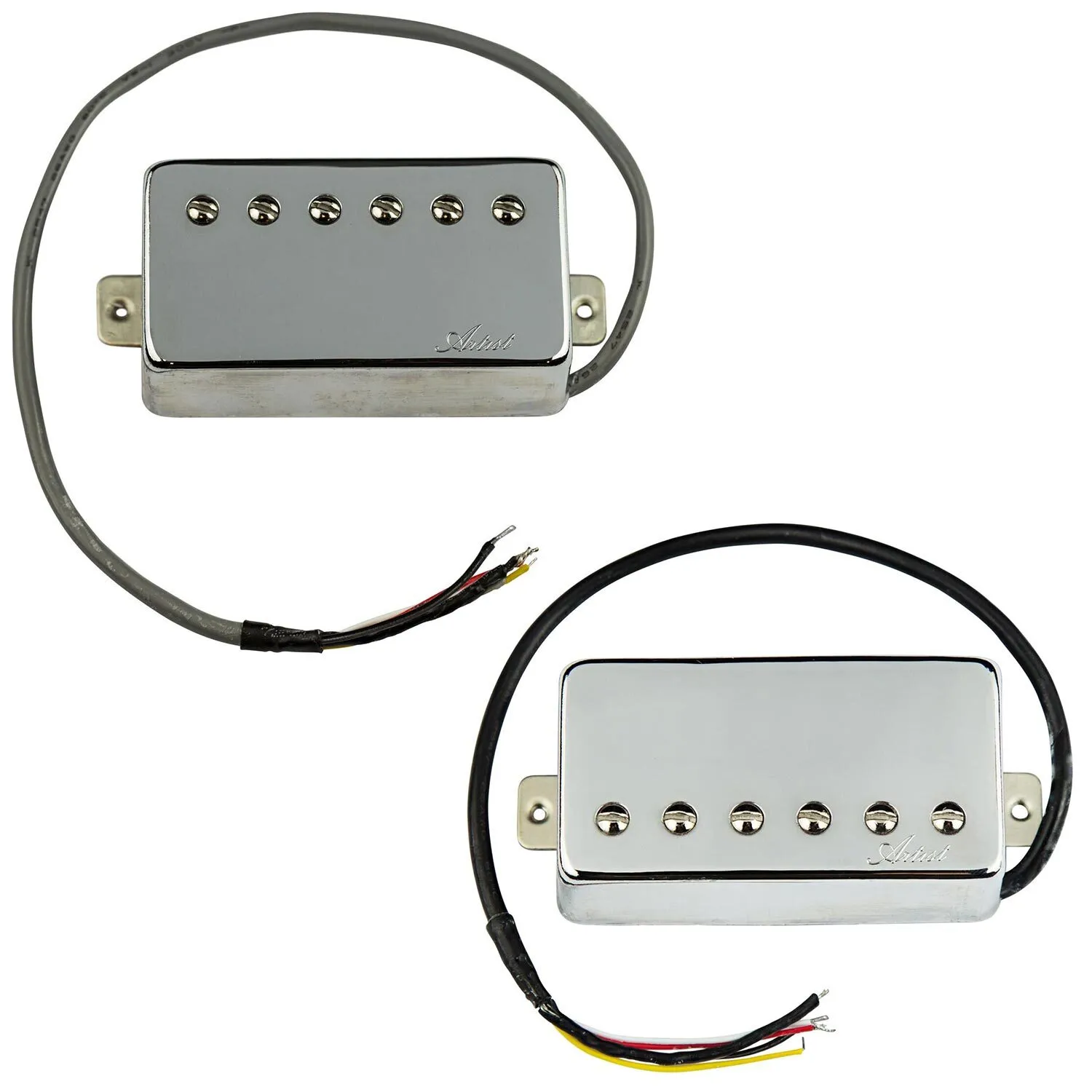

About this Artist BullBucker Humbucker Pickup Set - Chrome Covered

Buy as a set and Save! This includes both Neck and Bridge Pickups.

About this Artist BullBucker Electric Guitar Humbucker 5 Wire Pickup Bridge - Chrome Covered

Based on the popular JB model, this bridge pickup has a fairly high output and is very versatile. Great for everything from blues to heavy metal. Provides slammin' output with singing highs, aggressive harmonics, and can retain clear crisp cleans while being able to get real dirty. Pairs well with our BullBucker Neck Pickup.

Works especially well mahogany body guitars with rosewood fingerboards. They are wax potted and can be used as Split Coil Humbuckers which allows the humbucker to effectively become a single coil. All Artist Bullbucker humbuckers have five-conductor hookup wires and use the same standard wire colour code.

Top Coil Polarity: North

Bottom Coil Polarity: South

Ground Wire: Thicker Black wire

North start: Thinner Black wire (Also known as Inside Slug wire)

North finish: White wire (outside slug wire)

South finish: Red wire (Outside screw wire)

South start: Yellow wire (Also known as Inside Screw wire) This is your Hot wire.

To use this as a standard humbucker in series configuration, the White & Red wires are soldered together and taped; both Black wires are grounded and Yellow is Hot Output.

If you want to coil-split, then attach the Red and White wires to the coil switch. This means that when coil splitting, Black and White are not involved because they are both grounded, which deactivates the North coil.

To split to the North coil, the process is much the same, but you'll switch the position of the thin black and yellow wires, making the thin black wire the Hot start, and the yellow wire will be grounded. This means when the switch is activated, both Red and Yellow are grounded, deactivating the South coil.

The Tech Features

Model: BULLBUCKERBC

Type: Bridge Pickup, Alnico V Bar

Colour: Chrome

Conductors: 4

DC resistance: 15.4K

Inductance Rating: 9.6H

Spacing: 52mm

About this Artist BullBucker Electric Guitar Humbucker 5 Wire Pickup Neck - Chrome

Classic moderate output humbucker based on the popular Jazz model. Especially popular in the neck position. Great for jazz, and also country, blues, funk, classic rock and heavy rock. Provides an articulate and clear tone. Great for fast runs. The brighter tone has slightly less output and is a good match with most bridge pickups. When distorted, the tone is full and bright. Smooth sustain.

Works especially well mahogany body guitars with rosewood fingerboards. They are wax potted and can be used as Split Coil Humbuckers which allows the humbucker to effectively become a single coil. All Artist Bullbucker humbuckers have four-conductor hookup wires and use the same standard wire colour code.

Top Coil Polarity: South

Bottom Coil Polarity: North

Ground Wire: Thicker Black wire

South start: Yellow wire (Also known as Inside Screw wire)

South finish: Red wire (Outside screw wire)

North finish: White wire (outside slug wire)

North start: Thinner Black wire (Also known as Inside Slug wire)

To use this as a standard humbucker in series configuration, the White & Red wires are soldered together and taped; both Black wires are grounded and Yellow is Hot Output.

If you want to coil-split, then attach the Red and White wires to the coil switch. This means that when coil splitting, Black and White are not involved because they are both grounded, which deactivates the North coil.

To split to the North coil, the process is much the same, but you'll switch the position of the thin black and yellow wires, making the thin black wire the Hot start, and the yellow wire will be grounded. This means when the switch is activated, both Red and Yellow are grounded, deactivating the South coil.

The Tech Features

Model: BULLBUCKERNC

Type: Bridge Pickup, Alnico V Bar

Colour: Chrome

Conductors: 4

DC resistance: 7.1K

Inductance Rating: 3.86H

Spacing: 50mm
