Hotone LS10 Patch Kommander 4-Channel Programmable Loop Switcher Pedal
- Out of Stock | Next Shipment Due in Approx September
Hotone LS10 Patch Kommander 4-Channel Programmable Loop Switcher Pedal
The Hotone Patch Kommander is a compact, ultra-reliable 4-channel programmable loop switcher engineered to give guitarists and bassists total, transparent control over their pedalboards. Designed to eliminate complex "tap dancing" during live performances, the Patch Kommander routes your signal through four independent true-bypass relay loops, keeping unengaged effects completely out of your signal chain for uncompromised tonal clarity.
Housed in a rugged aluminium chassis with smooth, silent footswitches, the Patch Kommander provides a streamlined solution for both simple stompbox switching and multi-effect preset recall.
4 True Bypass Loops & Dual Operating Modes
Equipped with high-quality relay switching, the Patch Kommander offers versatile operation via two distinct modes:
- Direct Mode: Operates as a classic true-bypass loop switcher where each footswitch individually engages or bypasses its corresponding effect loop (1-4).
- Preset Mode: Allows you to program and instantly recall combination patches across 3 banks, providing a total of 12 user presets (4 presets per bank) for seamless multi-effect patch changes with a single footswitch press.
Built-in Input Buffer, SW A/B Amp Switching & Tuner Out
Beyond loop switching, the Patch Kommander incorporates essential utility features for complete rig integration:
- Switchable High-Quality Input Buffer: Preserves high-end clarity and prevents signal degradation over long cable runs without tone sucking.
- SW A/B Functionality: Loop 4 doubles as an A/B footswitch controller for switching channels on your guitar amplifier or triggering external equipment.
- Dedicated Mute / Tuner Output: Includes an independent Tuner Out jack and a dedicated Mute footswitch for silent tuning on stage.
(19893)
The Tech Features
Brand: Hotone
Model: Patch Kommander
Category: Programmable 4-Channel Effects Loop Switcher
Loops: 4 Independent True Bypass Relay Loops
Operating Modes: Direct Mode (Stompbox) & Preset Mode (12 Programmable Presets across 3 Banks)
Buffer: Switchable High-Quality Input Buffer
Amp Switching: Built-in SW A/B Function (via Loop 4)

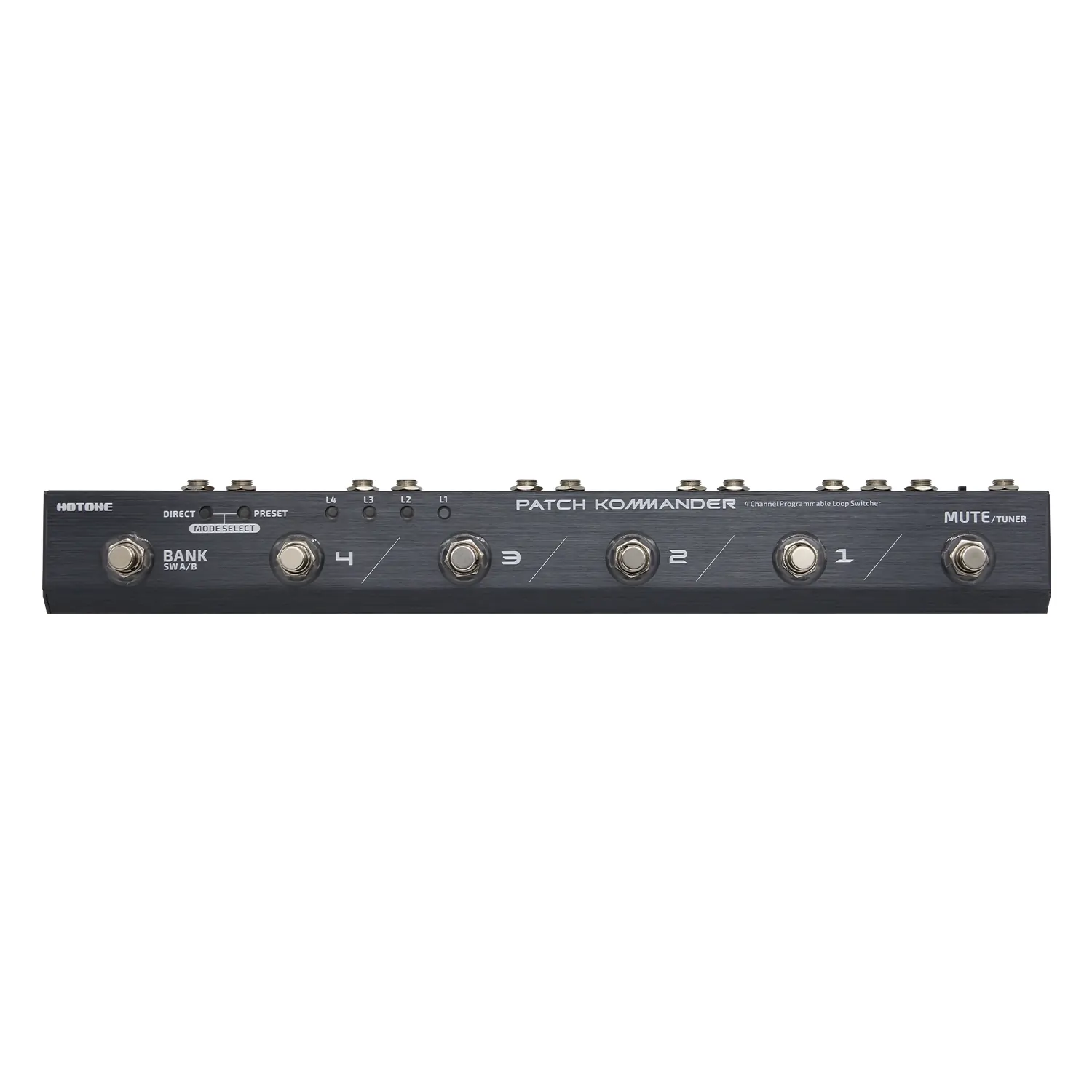

Controls: 6 Heavy-Duty Footswitches (Bank/Mode, Loop 1-4, Mute/Tuner)

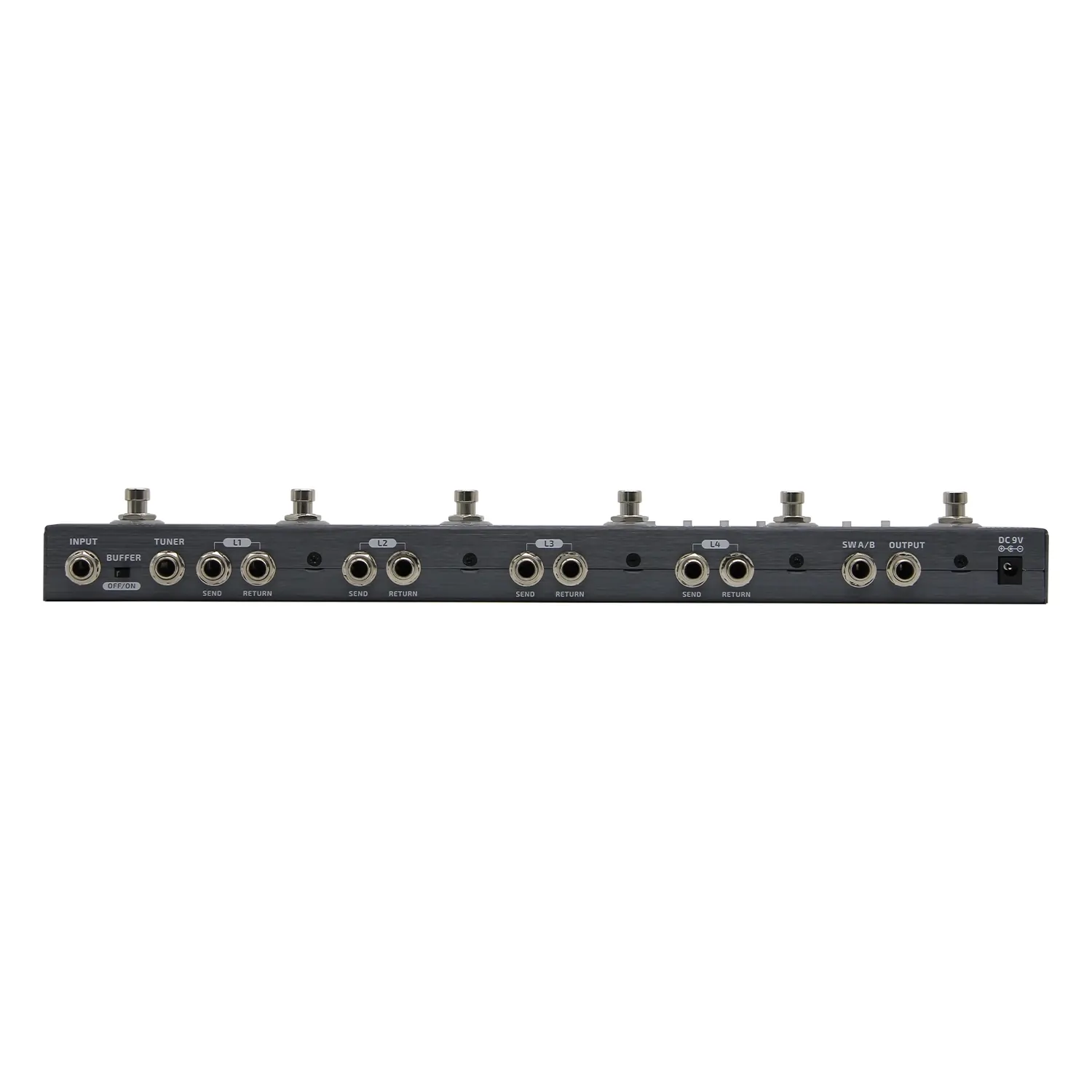

Inputs
- 1/4" TS Instrument Input
- 4 x 1/4" Return Jacks
Outputs:
- 4 x 1/4" Send Jacks
- 1/4" Main Output
- 1/4" Tuner Output
Power: 9V DC Centre Negative (Power adapter not included)
Current Draw: 150mA
Dimensions: 403 mm (W) × 56 mm (D) × 48 mm (H)
Weight: 535 g
