Hotone SP20 Soul Press II 4-in-1 Vol/Wah/Expression Guitar Pedal
- Pre-order | Ships 24 September 2026
- 4-in-1 pedal: switchable Volume, Wah, Volume/Wah, and Expression modes
- Vocal-like wah tone with Q (filter range) and Warm(290Hz-1.4kHz)/Classic(360Hz-1.8kHz) tone controls
- Active volume circuit for lossless tone; real-time dual-purpose STATUS LED indicates pedal position and mode
- Separate tuner and expression outputs; true bypass; larger footprint for ergonomic use
- Power: 9V DC or 9V battery
Hotone SP20 Soul Press II 4-in-1 Vol/Wah/Expression Guitar Pedal
The Hotone Soul Press II is a next-generation, multi-functional expression and effect pedal engineered for guitarists and bassists who need maximum functionality in a pedalboard-friendly footprint. Upgraded from the acclaimed first-generation Soul Press, the Soul Press II combines four essential operational modes into a single compact housing: Volume, Wah, Vol/Wah, and passive Expression.
Featuring an expanded pedal surface area for enhanced ergonomics, real-time status indication, and upgraded active volume circuitry, the Soul Press II provides smooth parameter sweeps, uncompromised signal clarity, and vocal wah response.
4-in-1 Mode Versatility with Q and Tone Adjustments

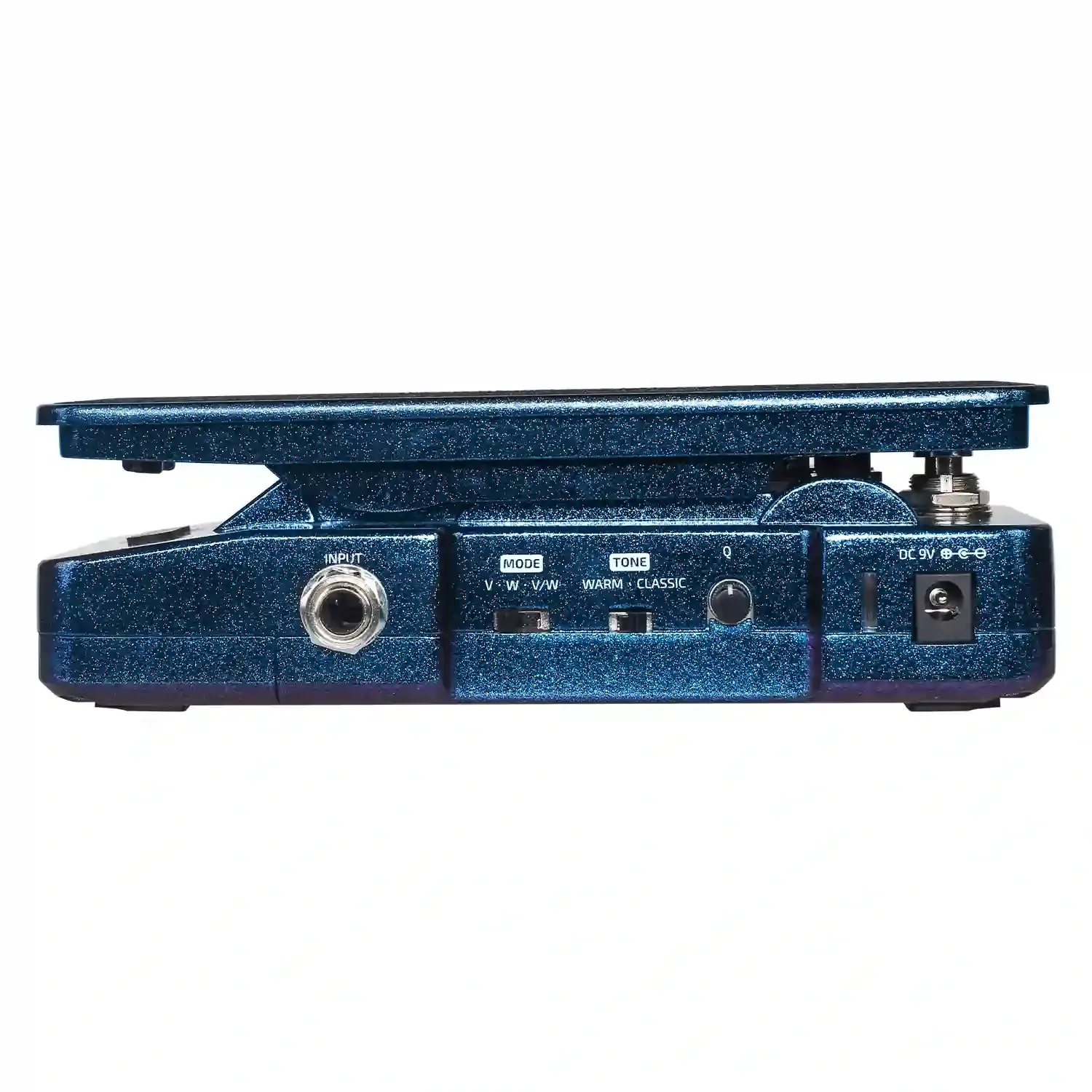

The Soul Press II offers four distinct operating modes selectable via an onboard toggle switch:
- Volume Mode: Active volume control design preserves pure guitar tone without high-end treble bleed or signal loss across the entire treadle sweep.
- Wah Mode: Classic vintage-voiced wah algorithm with adjustable Q (resonance) and Tone (frequency range) controls, allowing you to fine-tune the sweep from warm, vocal mid-sweeps to bright, aggressive bite.
- Vol/Wah Mode: Combines both effects into a single pedal sweep. Operating as a volume pedal by default, pressing the toe switch instantly engages the Wah effect without interrupting your signal flow.
- Expression Mode: Functions as a passive expression pedal that works without an external power supply. Compatible with digital modellers, multi-effects units, and modulation pedals via dedicated EXP OUT.
Real-Time Status Display and Flexible I/O Routing
Equipped with dual status LEDs, the Soul Press II features a multi-colour Status Bar LED that indicates pedal position in real-time, providing instant visual feedback on dark stages.

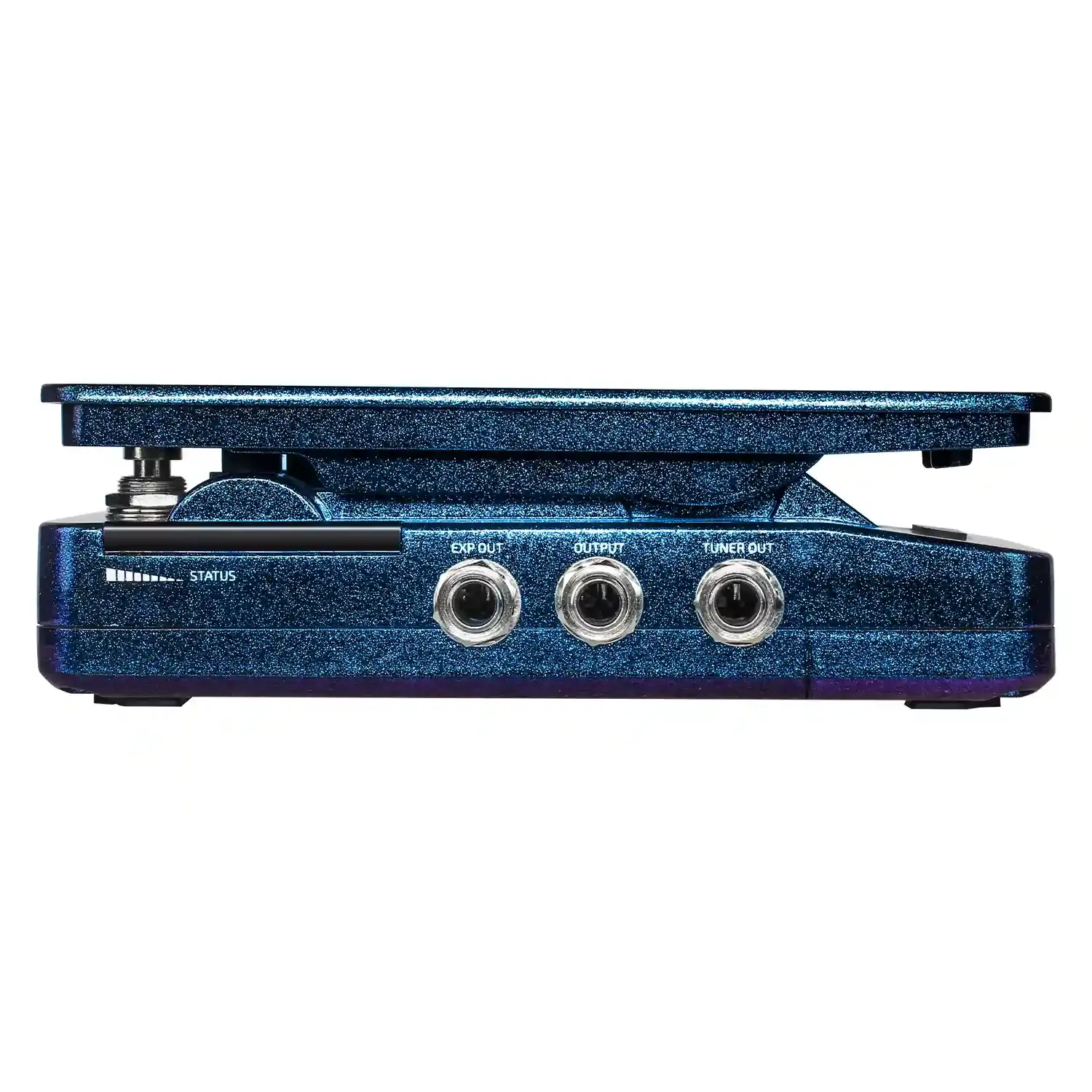

Designed for modern pedalboard routing, the Soul Press II includes independent Tuner Out and EXP Out jacks, allowing you to feed dedicated chromatic tuners or external expression inputs simultaneously without splitting your primary guitar signal.
(19853)
The Tech Features
Brand: Hotone
Model: Soul Press II
Modes: Volume, Wah, Vol/Wah, Expression
Potentiometer Impedance: 100kΩ (Expression)
Input Impedance: 1MΩ
Output Impedance: 100Ω
Wah Controls: Q (Resonance Value), Tone (Frequency Range Switch)
Status Display: Status Bar LED (Real-time pedal position & mode status)
Bypass: True Bypass (Wah mode)
Inputs
- 1/4" TS Instrument Input
Outputs:
- 1/4" TS Main Output
- 1/4" TS Tuner Output
- 1/4" TRS Expression Output
Power : DC 9V Centre Negative (Not Included) or 9V Battery (Power required for Volume and Wah modes only)
Current Draw: Max 30mA
Dimensions: 81 mm (W) Ă— 162 mm (D) Ă— 51 mm (H)
Weight: 500 g
