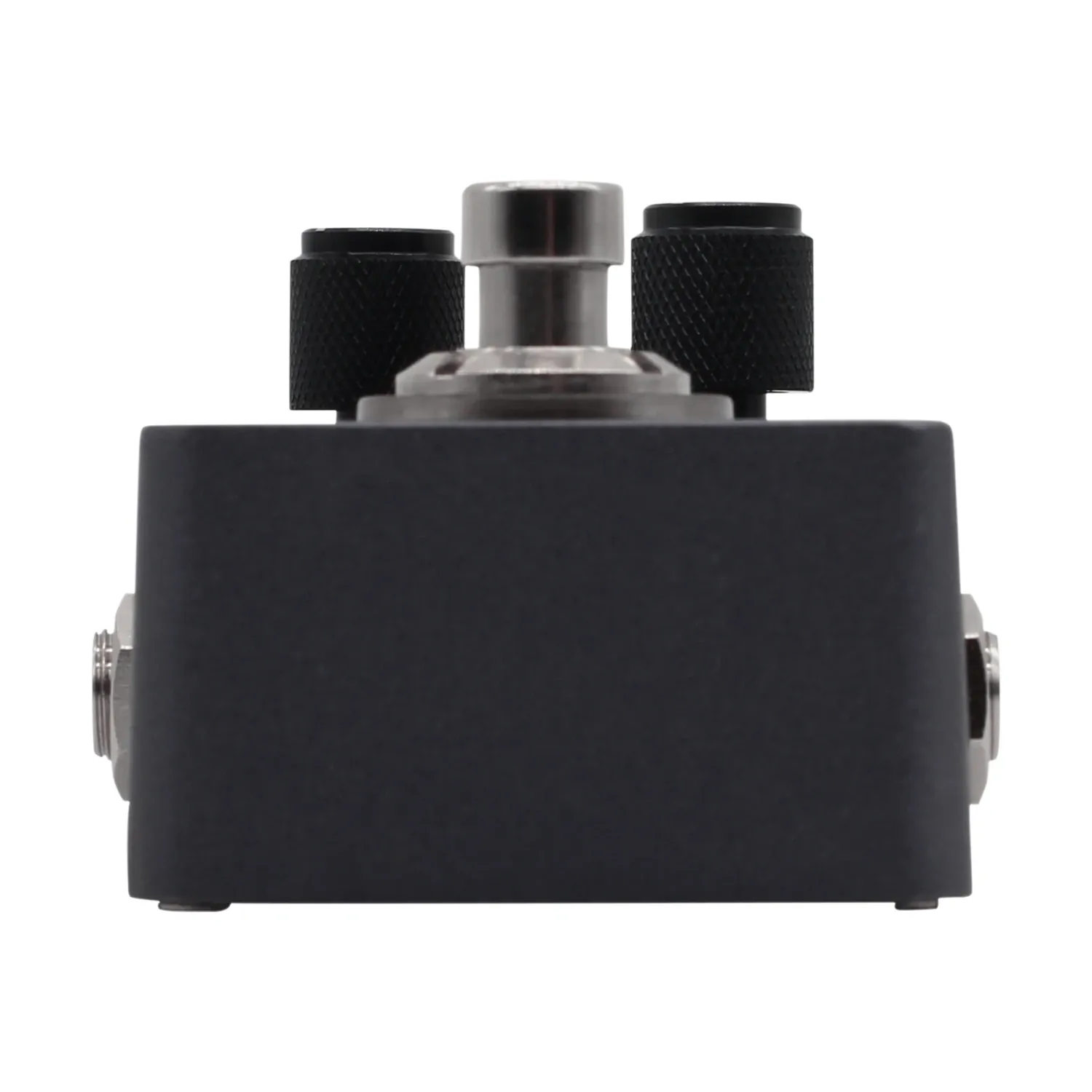

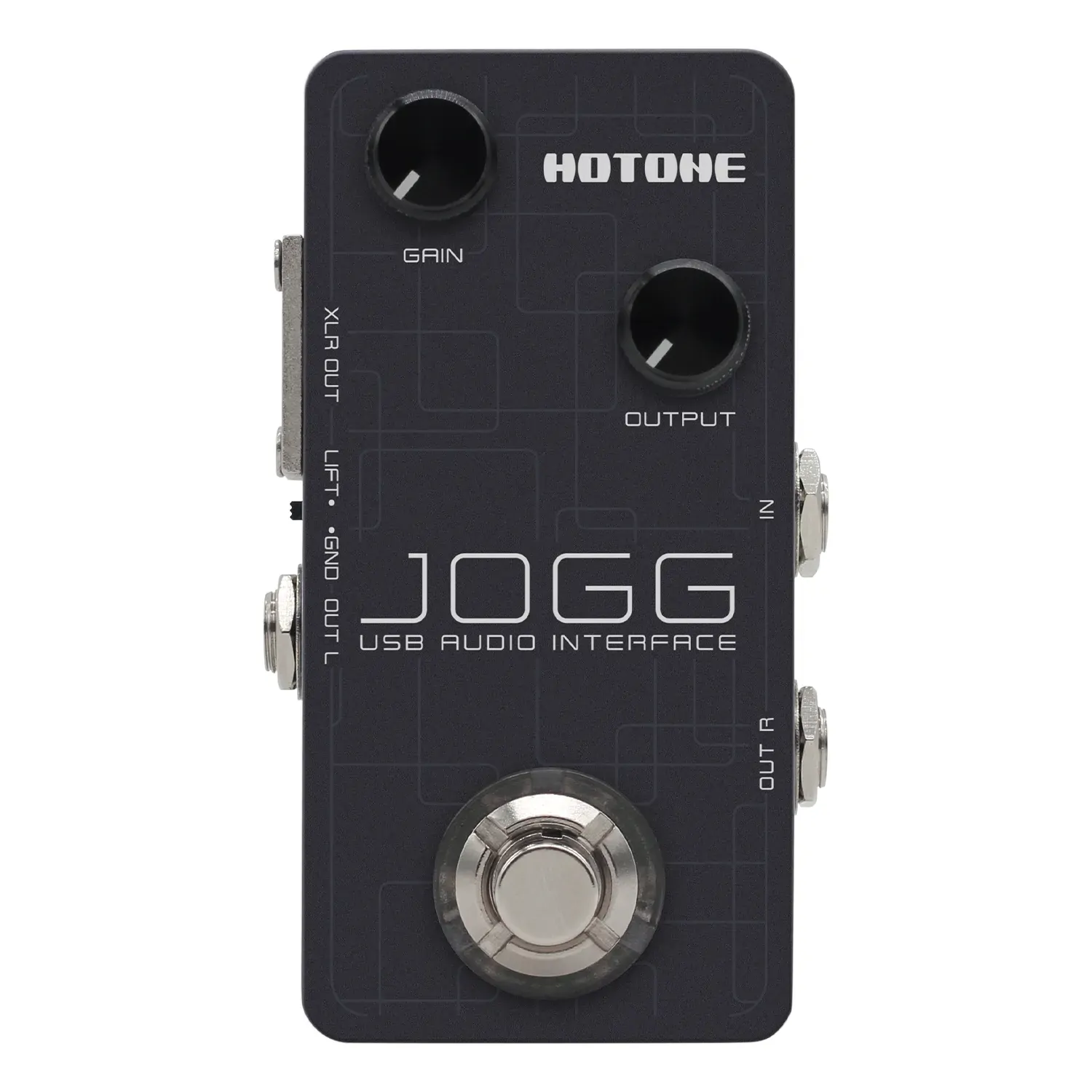

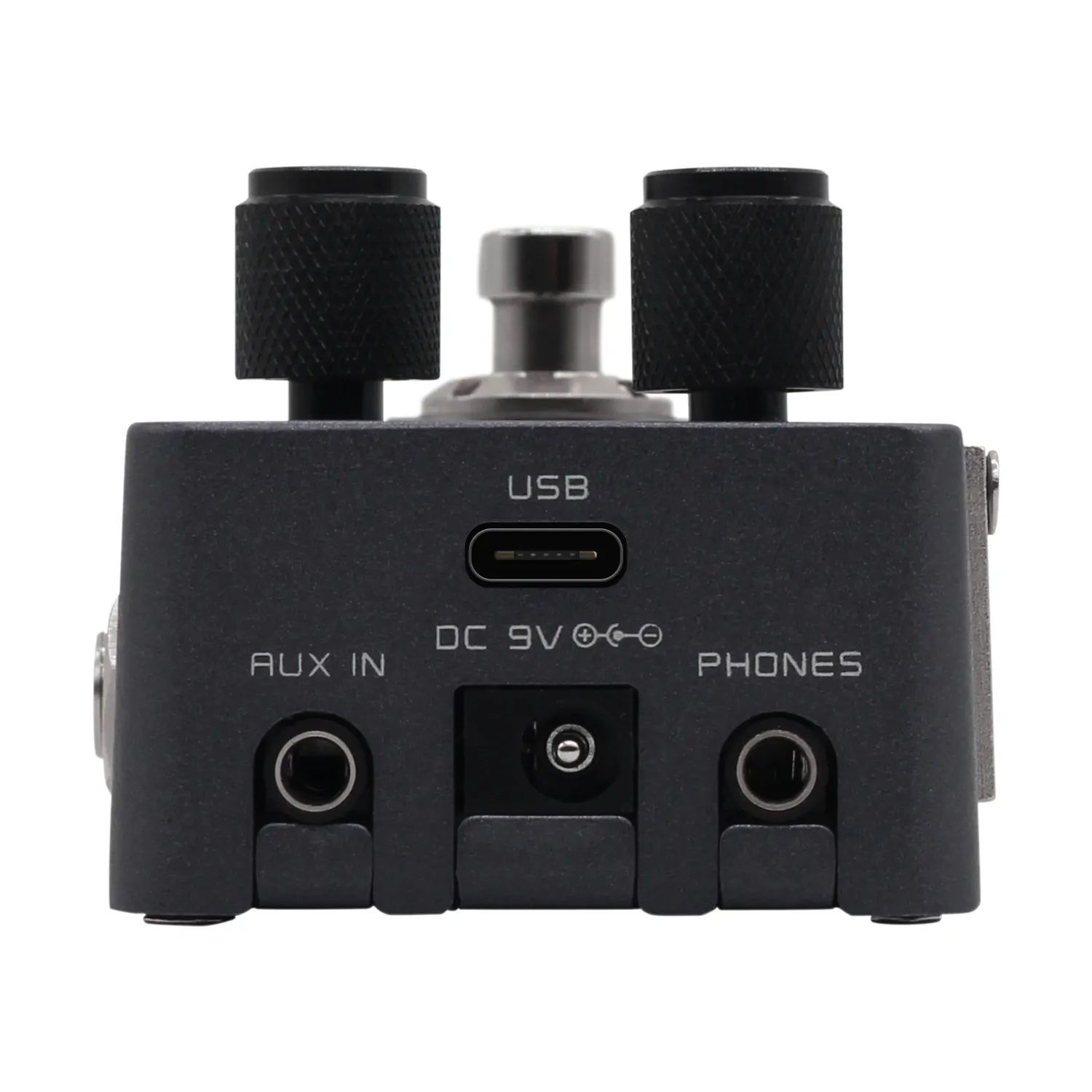

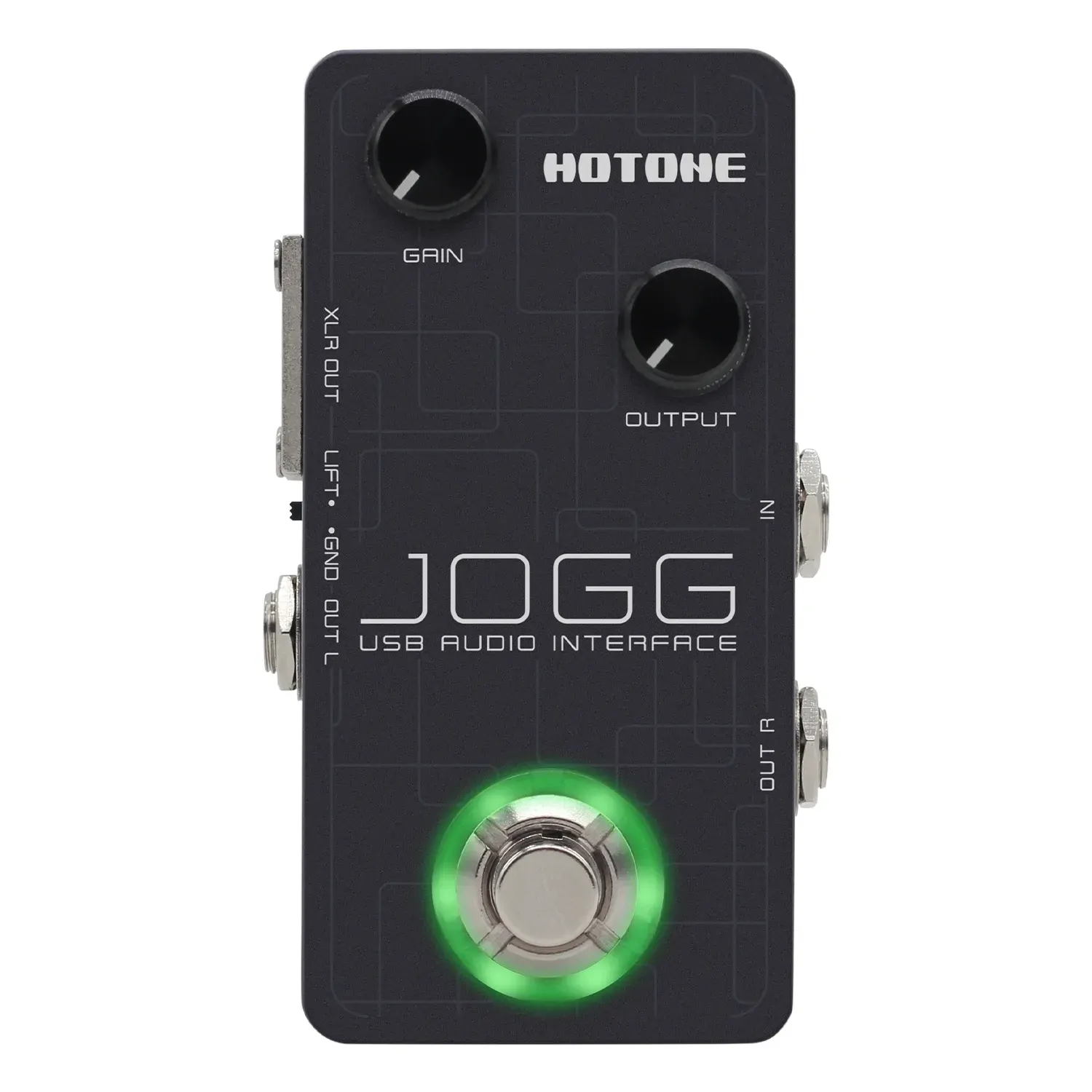

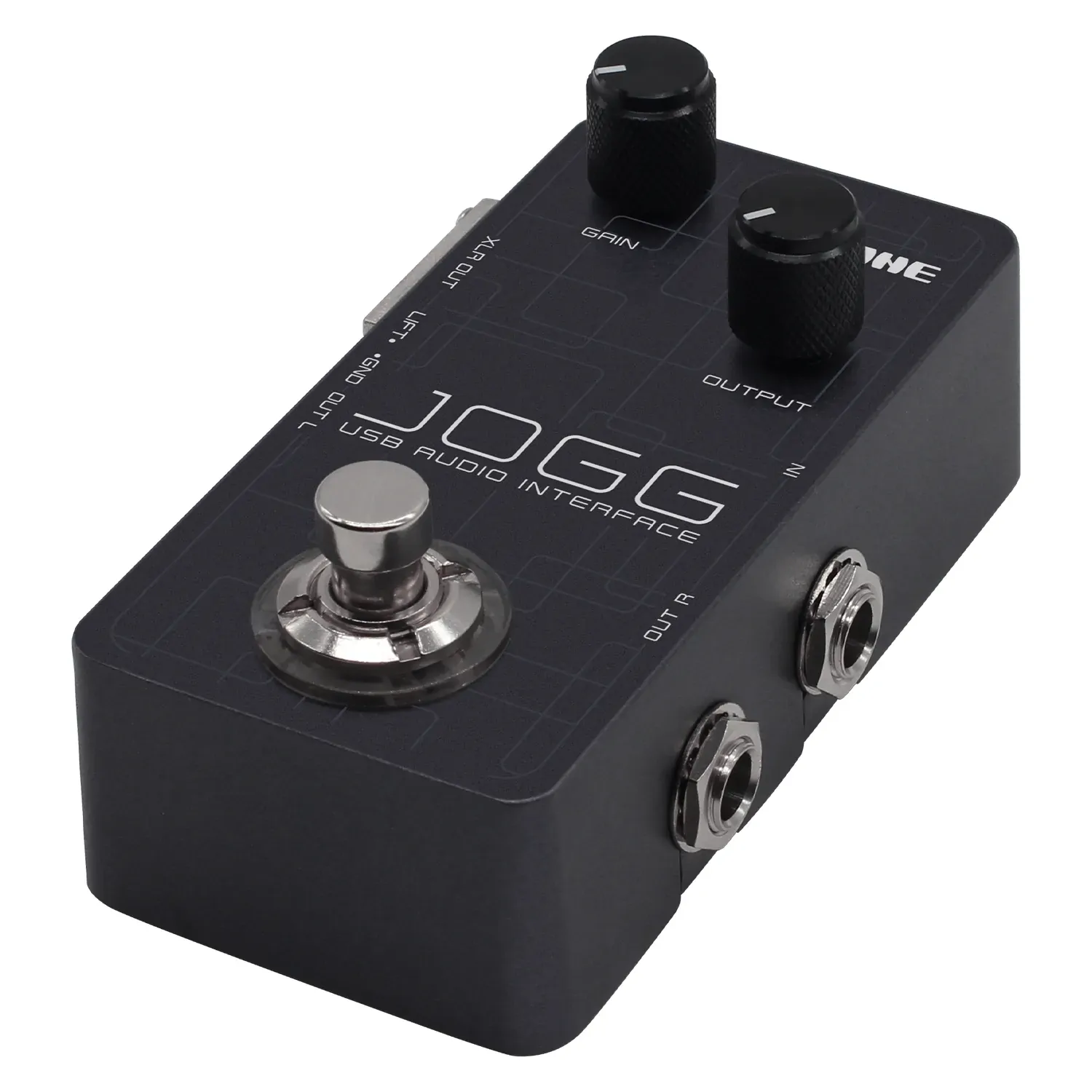

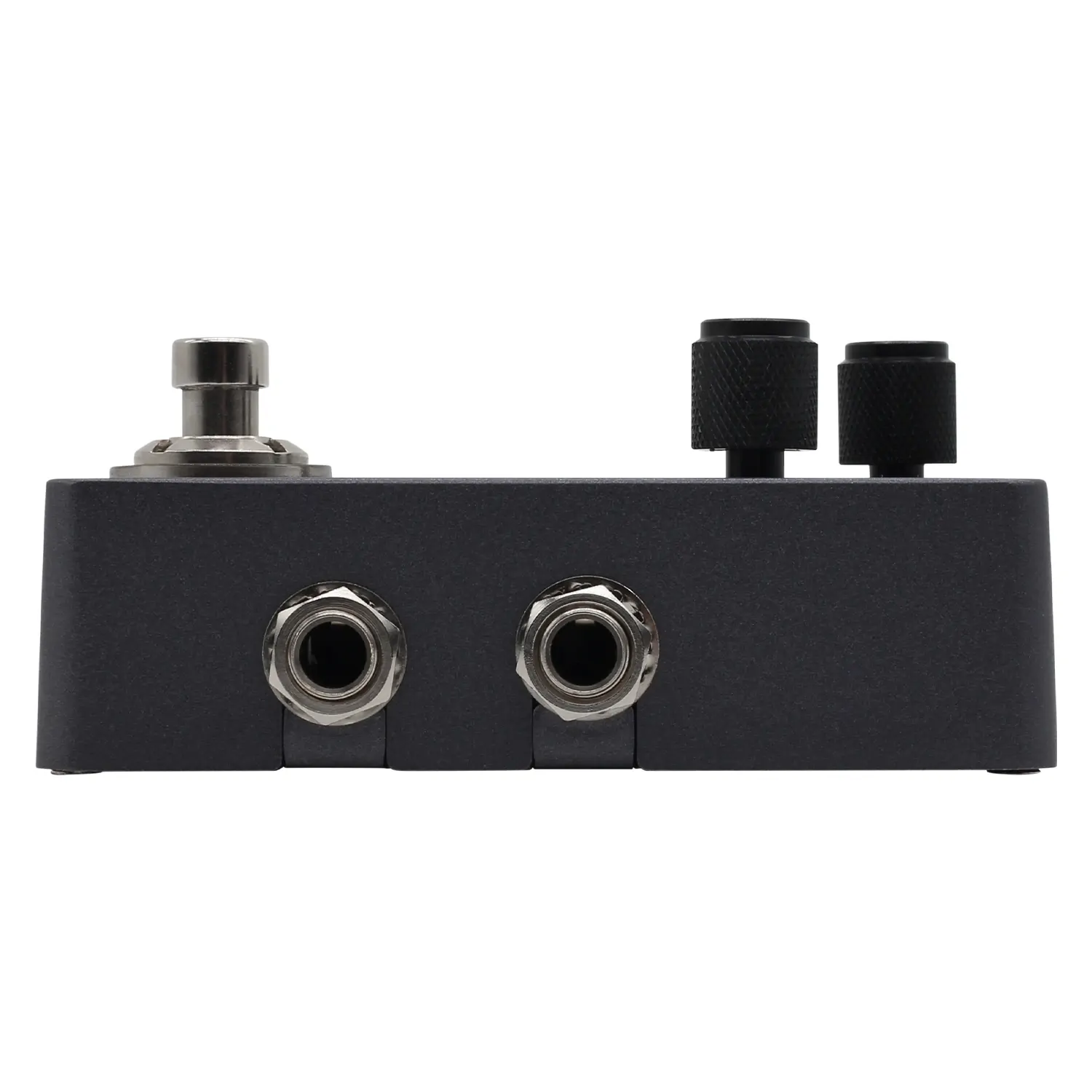

Hotone UA10 Jogg Stompbox USB Audio Interface Guitar Pedal
- Out of Stock | Next Shipment Due in Approx September
Hotone UA10 Jogg Stompbox USB Audio Interface Guitar Pedal
The Hotone Jogg is an ultra-portable 1 IN / 2 OUT USB audio interface engineered into a compact, pedalboard-friendly mini-stompbox format. Designed for guitarists, bassists, and mobile performers, the Jogg allows you to record high-resolution audio into your laptop, PC, Mac, iOS, or Android device, or run virtual amp software on stage direct to a house PA system.
Featuring 24-bit A/D/A conversion at 44.1kHz / 48kHz sampling rates, ultra-low audio latency, and a 1MΩ Hi-Z instrument input, the Jogg delivers uncompromised dynamic response and pristine sound quality wherever you play.
Versatile I/O Routing for Live and Studio Use
Equipped with comprehensive input and output options, the Jogg functions seamlessly on pedalboards, desktop studios, or mobile rigs:
- Hi-Z Instrument Input & Gain Control: Features a 1/4" Hi-Z mono instrument input with an onboard Gain control providing up to +12dB of clean input gain.
- Balanced XLR & 1/4" Line Outputs: Includes unbalanced 1/4" stereo outputs for amplifiers or monitors, plus a balanced XLR output with a switchable Ground Lift (LIFT/GND) to eliminate ground loop hum when connecting directly to PA mixers.
- Aux Input & Headphone Out: Includes a 3.5mm (1/8") AUX input for playing along with backing tracks and a dedicated 3.5mm headphone jack for silent monitoring.
- Direct Monitoring Footswitch: The heavy-duty footswitch toggles between direct monitoring and bypass.
Plug-and-Play Compatibility & Software Included
Operating via Micro-USB, the Jogg offers plug-and-play USB Audio 2.0 support across platforms. Power can be supplied directly via USB bus power or through a standard 9V DC pedalboard power supply.
Every Hotone Jogg includes a complimentary software activation code for the full version of Hotone VStomp Amp software (PC/Mac/iOS), granting instant access to studio-grade virtual amp and cabinet modelling.
(19902)
The Tech Features
Brand: Hotone
Model: Jogg
Category: Stompbox USB Audio Interface
Channels: 1 Input / 2 Outputs
Audio Quality: 24-bit A/D/A Conversion | 44.1kHz / 48kHz Sample Rate
Input Gain: Up to +12dB (Gain Knob)
Input Impedance: Instrument Input: 1MΩ
Output Impedance: 1/4" Unbalanced Out: 1kΩ | XLR Out: 100Ω | Headphones: 10Ω
Inputs:
- 1 x 1/4" TS Hi-Z Mono Input
- 1 x 3.5mm (1/8") TRS AUX Input
Outputs:
- 2 x 1/4" TS Unbalanced Line Outputs (L/R)
- 1 x Balanced XLR Output w/ Ground Lift
- 1 x 3.5mm (1/8") Headphone Output
Digital Connectivity: Micro-USB Port (USB Audio 2.0 / Bus Power)
System Compatibility: PC, Mac, iOS, Android
Software Included: VStomp Amp Activation Code (PC/Mac/iOS)
Power: 9V DC Centre Negative (200mA) or USB Bus Power
Dimensions: 58 mm (W) × 101 mm (D) × 47 mm (H)
Weight: 220 g
